Ericsson Uplink Booster

5G is no longer just about being first to market; instead, high performance and good coverage dominates mobile operator requirements. By exceeding service providers' needs, Ericsson’s Uplink Booster efficiently extends 5G mid-band coverage by a considerable margin.

The challenge

Service providers globally have broad interest in deploying 5G in new mid-bands (below 6GHz, Time Division Duplex TDD), which provides a good combination between coverage, capacity and latency.  However mid-band coverage is still limited by uplink.

The key to achieve uplink performance depends on custom solutions on the radio domain.

It is vital to maximize the value of the new 5G bands, ensuring larger coverage and higher spectral efficiency.

crowd using connected phones at a concert

Uplink Booster maximizes the value of 5G mid-band

The solution

Uplink booster architecture image

Uplink Booster extends coverage and increases spectral efficiency

The Ericsson Uplink Booster contains a high performing Physical Uplink Shared Channel (PUSCH) for NR, combined with the Ericsson Low Layer Split and Enhanced Common Public Radio Interface (eCPRI) and other Ericsson innovations.

Much of the PUSCH processing is made possible within the Intelligent antenna integrated radio (AIR) unit itself, enabling instant channel knowledge and minimal fronthaul consumption. The processing power of the Intelligent AIR and a sophisticated algorithm allows the Uplink Booster to come closer to linear receivers’ theoretical limits than any other solution, providing incredible performance with minimal fronthaul consumption. The combination of these enhancements gives greater uplink cell coverage, capacity and interference suppression.

In terms of coverage, the Uplink Booster directly addresses the usual coverage bottleneck in mid-band TDD NR, UL PUSCH (data channel, but also carries important control signals e.g. the Channel State Information, CSI). Improved 5G coverage overall enhances the efficiency of 5G mid-band deployments, allowing operators to ultimately provide better 5G coverage to end users at a lower cost and with an improved end user experience.

The benefit

The Ericsson Uplink Booster advantage is its ability to overcome traditional limits placed on cell coverage related to poor uplink signal quality. To achieve good coverage, it is important to have a strong uplink near the cell edge (or indoors) where RF signals are often degraded. The uplink coverage is extended with an application coverage gain up to 10dB, that is equivalent to an 90% increase of application coverage, and the cell-edge uplink speed can be increased by a factor of 10.

High-quality uplink radio signals provided by the Ericsson Uplink Booster also enable better downlink coverage. Combining quality uplink and downlink significantly increases overall 5G mid-band coverage.
Increased cell coverage and capacity allows mobile operators much greater scope for new business, as well as increasing effectiveness and efficiency of current network lifecycles, while establishing foundations for new technologies.

Ericsson uplink booster benefit box diagram
Uplink Booster is the key for superior mobility and higher user app coverage



Latest insights

Smart architecture design – Ericsson Uplink Booster

Ericsson Uplink Booster – in all our Massive MIMO mid-band radios- is a highly innovative solution based on a superior architecture and sophisticated algorithms to maximize uplink performance via extended coverage, increased user throughput and higher spectral efficiency. At the heart of Ericsson Uplink Booster, it is our Ericsson Silicon.

Download the brochure

Accelerating 5G coverage and capacity

Service providers are seeking to maximize the value of their 5G mid-band spectrum.  Join us to explore how Ericsson’s new ultra-lightweight mid-band Massive MIMO portfolio enables faster and easier rollouts. With 5G carrier aggregation and Uplink Booster capabilities, we deliver industry-leading network performance. These enhanced capabilities provide service providers greater flexibility and efficiency in the delivery of 5G services while boosting 5G performance.​

Massive MIMO

Ericsson ultra-light Massive MIMO radios and new RAN Compute products help ease mid-band deployment for service providers while lowering site footprint.

Explore more

The significance of the 5G Uplink Booster to the new normal

The 5G race is now less about being first to market and more about achieving the best coverage and performance. And more important than ever, the radio uplink is the key to winning this race. Here’s a look at how the 5G Uplink Booster has become a hero of mobile networks, enabling extensive coverage by securing a strong radio signal at the cell edge where most radio signals typically degrade.

Listen to the blogcast

How to build high-performing Massive MIMO systems

5G New Radio is the first truly Massive MIMO native standard. In this blog post, we explore how Ericsson has mastered the Art and Science of Massive MIMO to both unleash the full capacity benefits and extend the coverage of the new 5G mid-band spectrum - bringing outstanding user experience today, and setting the stage for the advanced applications of tomorrow.

Read the blog post

The Voice of 5G podcast: "Soft 5G" Episode 56 including both 5G NR Carrier aggregation and Uplink Booster

5G is not just about hardware! In this episode we talk about software features which are already improving 5G coverage and capacity! We're talking Massive MIMO, Ericsson Uplink Booster and 5G NR carrier aggregation with Sebastian Faxér and Björn Karlberg from our product management team

Listen to the podcast

Related offerings

5G Carrier aggregation

Coverage and capacity are the key elements of an optimal 5G user experience. Carrier aggregation is the foundation for a better 5G, an effective tool to extend the coverage of mid and high-band that leads also to an increased capacity.

5G RAN

Switch on 5G with Ericsson Radio System. Secure a smooth, fast and agile introduction of 5G, to reduce cost per gigabyte for your mobile broadband business and enabling industry digitalization for growth.

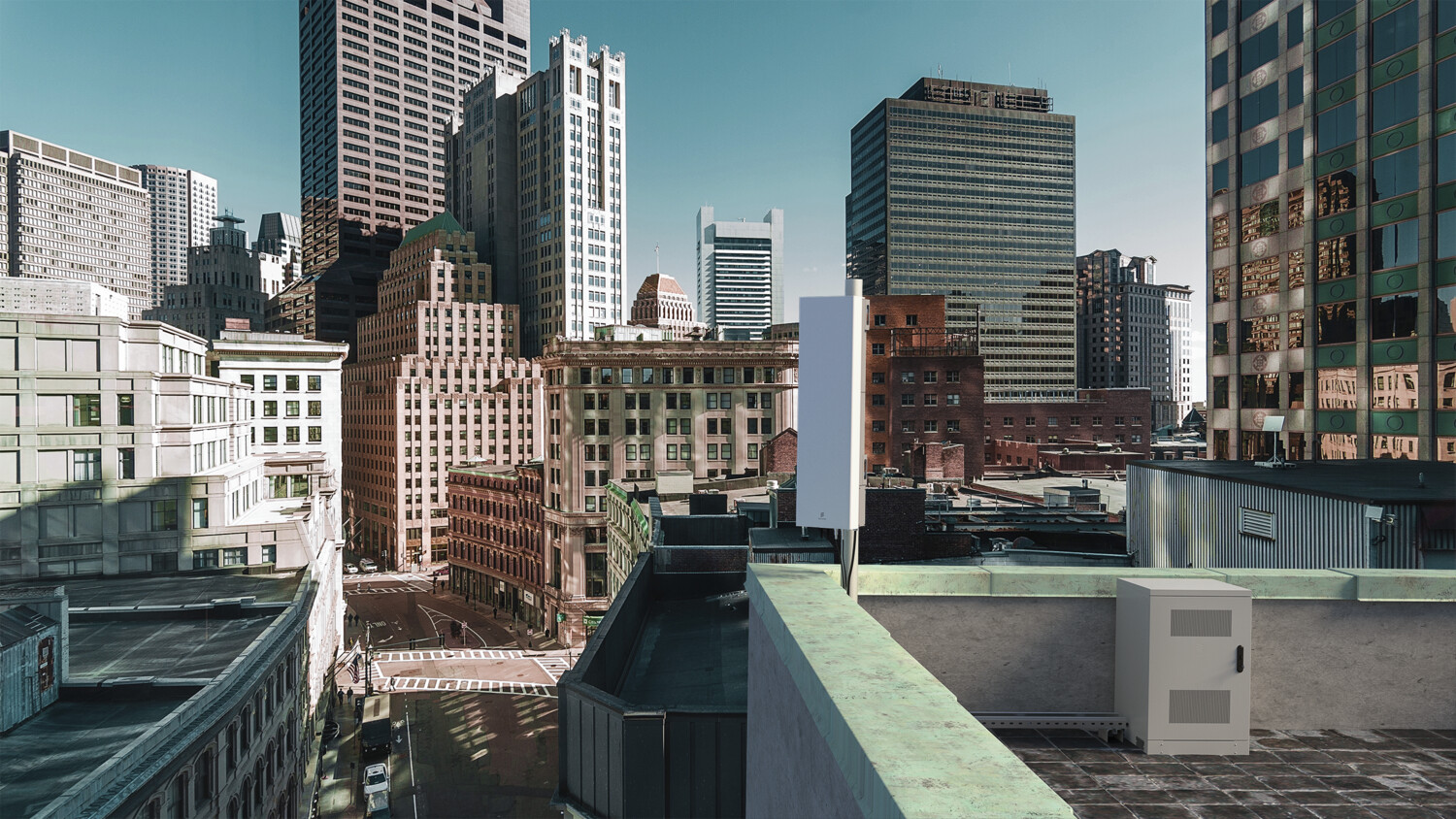

Ericsson Radio System
